Tri-gas Incubato

Danh mục: ĐO NHIỄU XẠ

Key Features

Data Manage: Real-time view of parameter curves: temperature, CO2 concentration, and 02 concentration; Data logging and download function.

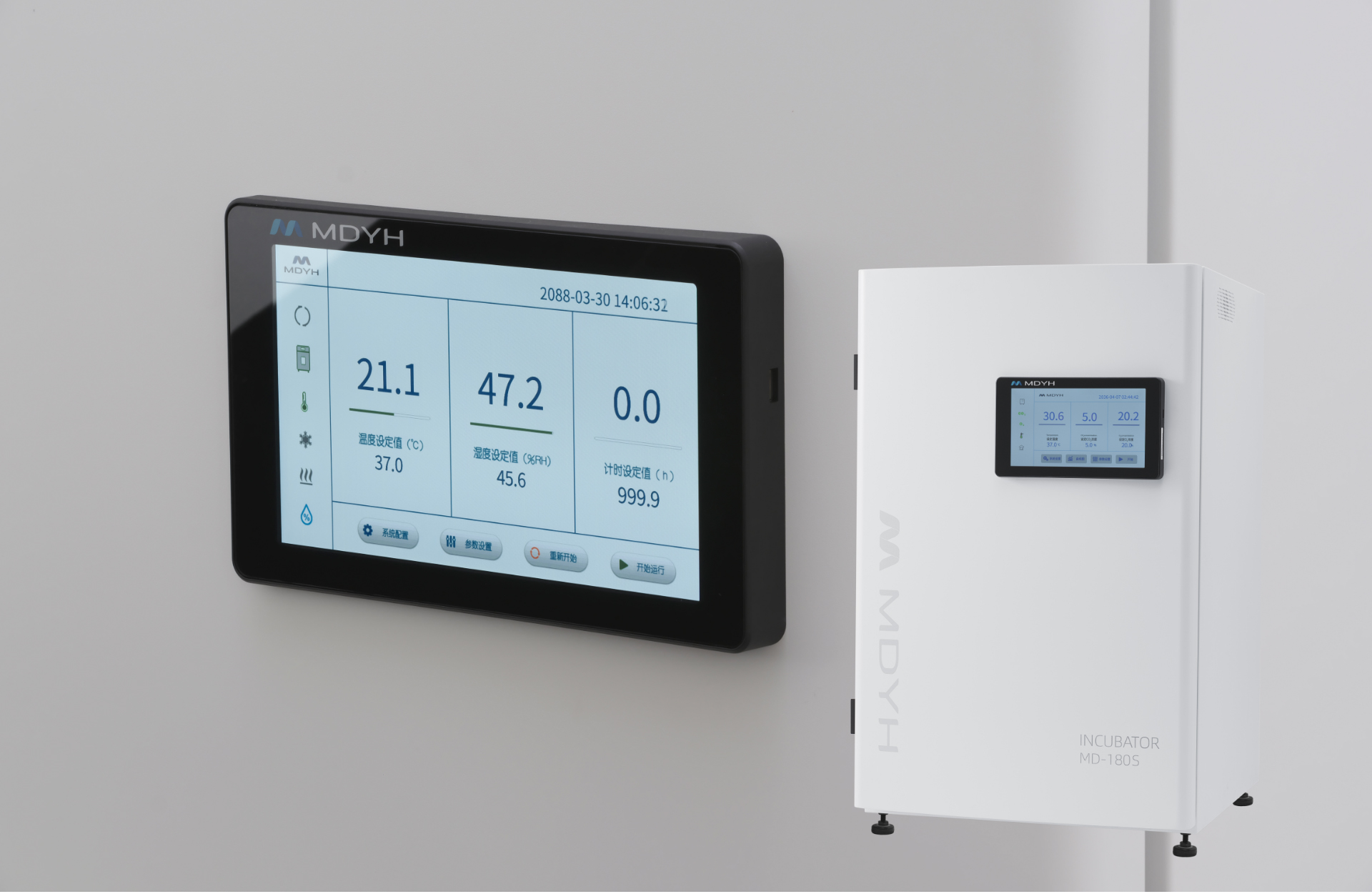

Touch Screen: 10-nch color touch screen, clear and Intuitive display, USB interface for Data output.

COz Imported infrared (IR) CO2 sensor, not affected by temperature and humidity changes, stable control and long service life.

Control:

Fast CO2 Recovery: CO2 content recovers to 5% of set level within 5 Min., after opening door for 30Sec, achieving rapid stability and uniformity.

Temperature Control: High-precision temperature sensor to ensure accurate control of Chamber temperature.

6 sided heating can prevent generating condensate, it avoids breeding bacteria and causing contamination to the cultivation environment.

Contamination Prevent: 140°C dry heat disinfection on the chamber to provide safe experimental environment.

Built-in HEPA can quickly maintain the air cleanliness to IS05 level.

Air inlet equipped with HEPA to effectively block bacteria and dust particles 20.3um in CO2 gas.

With heating function, outer door can effectively prevent inner glass from generating condensate, avoids risk of microbial contamination.

Optional 90° moist heat disinfection.

02 Control: Imported zirconium oxide 02 sensor, stable control and long service life.

Humanized Design: Detachable, anti-dumping, integrated shelf can be disassembled without tools.

HEPA is easy to disassemble and install without tools.

Visual glass door for easy experiment observation.

Safety System: Alarm of High temperature, low temperature and over-heated cooling fan automatic start and stop

CO2 content excess or too low Disinfect palm rejection|HEPA replace alert.

Integrated Chamber: SS304 material, corrosion-resistant, 100% arc design, no dead corners, easy to clean, effectively prevent contamination.

Optional bacterial-control stainless steel.

Test Hole: Connected to external sensors of temperature, CO2 content, humidity, and etc.

Cables can be introduced through it, ensuring sealing of Chamber.

Sampling Hole: Chamber parameters such as temperature and gas content can be measured through it.

Name Tri-gas Incubator
Model(L)	MD-120S/180S/240S	02 Control accuracy, %02 10.1
Control System	PID control	02 Sensor	zirconium oxide
Heating method	Air-jacketed		Max. deviation: 0-1%, Min. deviation: 0-1%
Temperature range °	Ambient temperature +3-60		560X620X710mm
Temperature control accuracy ° ‡0.1			580X640X940mm 680X740X860mm 480X500X500mm
Temperature uniformity°C	‡0.3	Chamber size	580X640X940mm 680X740X860mm 480X500X500mm
Alarm setup	Upper & Lower deviation: 0-5°C Lower deviation:0~+5°C		500X520X710mm 600X620X650mm
Ambient temperature	18-30°C	Humidity range, %RH	Up to 95%
Disinfection	Standard 140°C dry heat, Optional 90°C moist heat / UV	Humidification method	Natural
CO2 concentration range, %CO2	10-20	Power supply	AC220‡10%,50-60Hz
COz control accuracy, %CO2	10.1	Volume	120L/180L/240L
CO, Sensor	IR infrared sensor is standard	Chamber	SS304 mirror, Optional bacterial-control stainless steel
Alarm parameter setup	Upper & Lower deviation: 0-1% Lower deviation: 0-1%	Housing	Carbon steel coated
02 Concentration range, %02	0-100	Power	1200W
