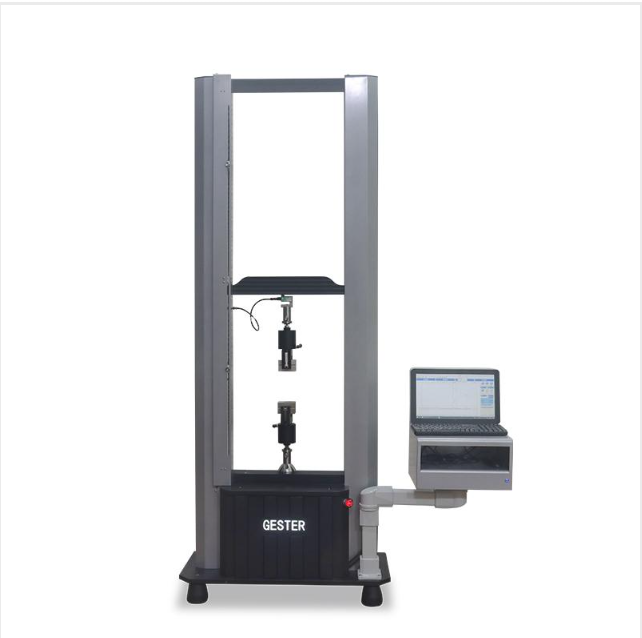

MODEL: GT-C01-1
FEATURES
- Equipped with a PANASONIC AC servo drive system, a SESAME gearbox from Taiwan, synchronous pulleys, and TBI precision ball screws, ensuring smooth crosshead movement, low noise, and high positioning accuracy.
- Aluminum alloy column covers and a high-temperature-cured, powder-coated finish provide lasting color durability.
- Multiple protection functions:
- Crosshead travel limit protection.
- Grip collision protection.
- Software-defined displacement and load limits.
- Load cell overload protection and software specimen load protection.
- Overcurrent and overvoltage protection.
- Real-time monitoring of key components enhances operational safety and reliability.
- Open software system allows users to customize test programs, data analysis formulas, and test reports according to the material type, characteristics, and required test methods.
- Programmable grip separation with automatic positioning.
- Adjustable gauge length.*
STANDARDS
- ISO 13934-1, 13934-2, 13935-1, 13935-2, 13936-1, 13936-2, 13936-3, 13937-2, 13937-3, 13937-4, 1421, 2411, 2062, 4674-1, 5082, 9073-3, 9073-4, 9073-18.
- BS 2543, 2576, 3320, 3424, 4303; M&S P11, P12, P13, P14.
- JIS L1096.
- ASTM D434, D751, D885, D1683, D2256, D2261, D2724, D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735.
APPLICATIONS
The Dual-Column Tensile Testing Machine is designed for tensile, compression, flexural, shear, adhesion, peel, tear, and other tests on rubber, plastics, leather, metals, nylon, fabrics, paper, and materials used in aerospace, packaging, construction, and electrical applications.
It is a fundamental instrument for quality control, incoming inspection, physical testing, mechanical research, and materials development.
TECHNICAL SPECIFICATIONS
| Parameter | GT-C01-1A | GT-C01-1A |
|---|---|---|
| Display | Computer monitor | Computer monitor |
| Maximum load capacity | 5 kN | 10 kN |
| Force resolution | 1/100,000 | 1/100,000 |
| Accuracy | ≤ ±0.2% | ≤ ±0.2% |
| Test speed | 0.01–1,000 mm/min, computer-programmable | 0.01–1,000 mm/min, computer-programmable |
| Clear width between columns | 400 mm | 400 mm |
| Stopping and return functions | Overload stop, emergency stop button, automatic stop upon specimen failure, upper and lower travel limits, automatic return | Overload stop, emergency stop button, automatic stop upon specimen failure, upper and lower travel limits, automatic return |
| Drive system | Servo motor, synchronous pulley, and precision ball screw drive | Servo motor, synchronous pulley, and precision ball screw drive |
| Power supply | AC 220 V, 50/60 Hz, 10 A | AC 220 V, 50/60 Hz, 10 A |
DIMENSIONS AND WEIGHT
| Parameter | Specification |
|---|---|
| Overall dimensions (L × W × H) | 820 × 630 × 1800 mm |
| Packing dimensions (L × W × H) | 910 × 630 × 1820 mm |
| Gross weight | 175 kg |
| Net weight | 216 kg |
ACCESSORIES
Standard Accessories
| Item | Quantity |
|---|---|
| Pneumatic grips | 1 set |
| English-language operating software | 1 copy |
| PC connection cable | 1 pc |
| Load cell | 1 pc |
| Computer | 1 set |
Optional Accessories
| Item | Availability |
|---|---|
| Load cells: 50 N, 100 N, 250 N, 500 N, 750 N, 1 kN, 2.5 kN | Optional |
| Other fixtures | Optional |
